W-Modbus :

Wireless Modbus replaces traditional RTU cable

Title

  • W-Modbus is a wireless development of the proven Modbus standard. Within the wireless Modbus RTU network, wired products can be easily replaced by wireless devices. The standardized Modbus protocol is retained, and signals are transmitted with low latency.

  • Title

    W-Modbus facilitates the implementation of intelligent home automation thanks to reliable and secure wireless communication. The new technology scores points for cost reduction, greater flexibility and lower installation and maintenance costs. Thanks to mesh topology, up to 100 devices can be assigned to a W-Modbus gateway.
Button

Highlights

  • Timeless design

    Elegant case with black and white glass front panel

  • Integrated environmental sensors

    Enables energy-efficient room ventilation

  • Extended configuration

    Room control units tailored to your needs

  • Intelligent building automation

    Thanks to fast Modbus communication and numerous features

  • Touch buttons / touch screen

    Intuitive, intelligent operation, low power consumption

  • Many standard languages

    For menu control (DE, EN, FR, ES, IT, UK, others on request)

  • Quick installation

    Simple installation and immediate commissioning
Button

What are the advantages of Rymaskon® devices?

  • Timeless design in an elegant case (white/black)
  • Intuitive operation with modern graphics and buttons
  • Wide range of configuration options
  • Integrated environmental sensors for energy-efficient room ventilation
  • Save energy and protect the environment with automatic dimming, standby, wake-up, time control and more.
  • Extensive room lighting control with dimming and color adjustment functions
  • Numerous standard languages for menu control
  • Quick and easy installation

Contents

1 2

Title

  • Rymaskon 1000 - Interface

    The interface (room operating unit) is used to display and set actual and setpoint values for a room. The values are made available to the building management system (BMS) via the Modbus or W-Modbus interface.

    Temperature setpoint and ventilation levels, as well as sun protection and lighting, can be set by the user directly on the device or specified by the BMS.

    Interface highlights :

    • Modbus / W-Modbus (wireless) for recording ambient values and for higher-level monitoring/control
    • Temperature control | Fan control | Solar shading control | Lighting control
    • Internal sensors for temperature, humidity, CO2 and VOCs
    • Free, user-friendly configuration software (via USB-C)
    • Installation directly on the wall or on a flush-mounted box
    • Mounting directly on the wall or on a flush-mounted box

  • Rymaskon 1000 - Controller

    The controller variants also have integrated controllers which control all common actuators, damper drives or fans directly via the outputs, and can therefore be used as stand-alone devices. All values are made available to the building management system (BMS) via the Modbus or W-Modbus interface. If required, the BMS can intervene at short notice during operation and adjust parameters, or prevent manual operation by the user by blocking individual functions.

    Controller highlights :

    • Stand-alone controller
    • 24V or 230V power supply
    • Outputs for controlling actuators, damper actuators, fan coils, etc.
    • AO - 0...10V | DO - 24V (floating) | RO - 230V (floating)
    • 2 inputs for one NTC10K, floating or floating 230V contact
    • Modbus / W-Modbus (wireless) for recording ambient values and high-level monitoring/control
    • temperature control | fan control | solar shading control | lighting control
    • Internal sensors for temperature, humidity, CO2 and VOCs
    • Free, user-friendly configuration software (via USB-C)
    • Installation directly on the wall or on a flush-mounted box
    • Mounting directly on the wall or on a flush-mounted box
Button

Add a slogan

Is wireless communication possible?

Thanks to the latest W-Modbus technology, Rymaskon devices can also be integrated wirelessly into the building automation system. Expanding existing networks with W-Modbus is no problem either - up to 100 devices can be assigned to a W-Modbus gateway in the network. The wireless range is up to 500 meters - even bridging critical elements such as fire doors is no problem. Simple installation and immediate commissioning also save you time and money.

Read everything you need to know about W-Modbus here.

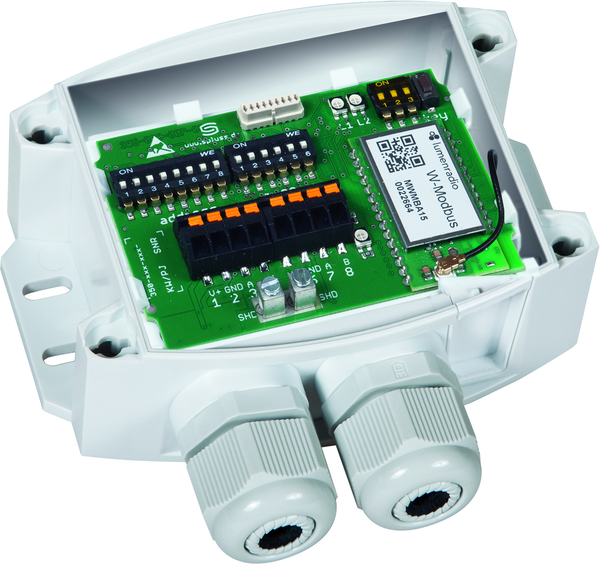

KYMASGARD GW-wModbus Pro, mit geöffneter Abdeckung - S+S Regeltechnik

Add a keyword

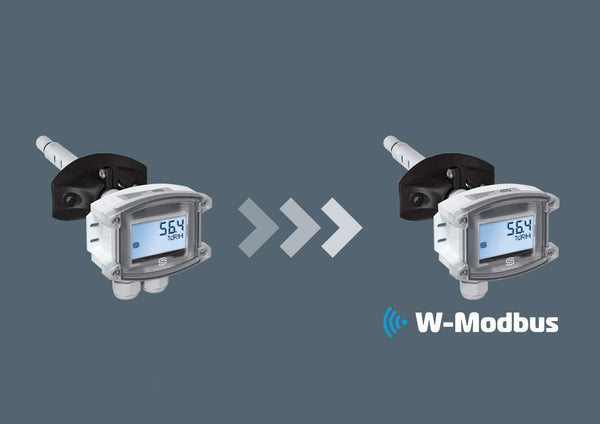

Isn't it expensive to integrate W-Modbus?

No! Our devices come with a €40 surcharge for the W-Modbus module. This is a small price to pay for the advantages of wireless installation.
What's more, installation does not need to be carried out by specialist personnel, as only the power supply needs to be ensured. Configuration is then carried out via the W-Modbus wireless connection.

See details of variants

Can I buy W-Modbus sensors from S+S Regeltechnik?

Yes, S+S Regeltechnik GmbH has recognized the advantages of this new communication standard, and now offers all Modbus devices in a wireless Modbus version.
Our measuring devices provide reliable and accurate measurement data, enabling precise control and optimization. Take a look at our new W-Modbus product range. Whether you need transmitters for building automationHVACor process technology, we have the right product for you.

Take advantage of our cost-effective solutions without compromising quality. We offer you all items relating to sensors and field devices from a single source, because we know how important it is to have a competitive price. Our range goes beyond the standard portfolio, making us the ideal choice.

S+S W-Modbus products are also compatible with products from other manufacturers. Existing networks can therefore be easily extended or replaced by our devices.
