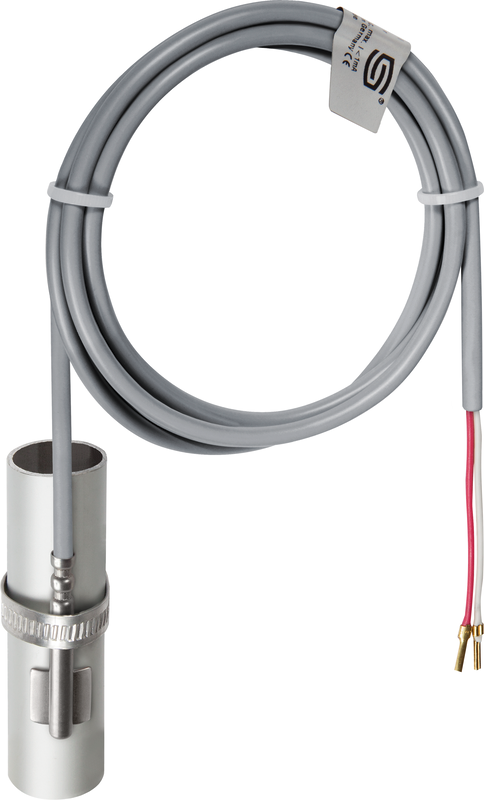

Contact temperature sensor / pipe contact sensor THERMASGARD® ALTF1 LM235Z PVC 1.5M
THERMASGARD® ALTF1 LM235Z PVC 1.5M
SKU 1101-6022-1211-110
EAN 4 251325 604503
Product group: WG03B
In stock
, available in 1-3 working days
Shipping calculated at checkout.
Regular price
23,60 €
Regular price
Sale price
23,60 €
Livraison en 2 jours en France
5 ans de garantie
Demander une remise quantitative
Product description
- KL = 1.5 m
- passive
- Pipe support bracket made of stainless steel V4A (1.4571), Ø = 6 mm, L = 50 mm
THERMASGARD® ALTF 1 contact sensors are electrical contact thermometers that are used to measure the surface temperature of solid bodies and have at least one so-called contact surface or contact area that is brought into contact with the surface to be measured.
The contact temperature sensor ALTF 1 with connection cable and passive output determines the temperature of the medium flowing in the pipe (e.g. the water temperature) via the surface temperature. The ALTF 1 is a pipe contact resistance thermometer with clamping band and axial sensor tube for temperature measurement on pipes (e.g. cold and hot water) or on heating pipes for heating control.
The contact temperature sensor ALTF 1 with connection cable and passive output determines the temperature of the medium flowing in the pipe (e.g. the water temperature) via the surface temperature. The ALTF 1 is a pipe contact resistance thermometer with clamping band and axial sensor tube for temperature measurement on pipes (e.g. cold and hot water) or on heating pipes for heating control.
Technical data
| Sensor | LM235Z |
| Type of function | Measurement temperature |
| Measured variables | Temperature, passive temperature |
| Cable length | 1.5 m |
| Display | No |
| Protection class | IP65 |
| Output variant | Cable with ferrules |
| Measuring range | –35...+105 °C PVC –35...+180 °C Silicone (Tmax NTC = +150 °C, Tmax LM 235 Z = +125 °C) |
| Cable material | LiYY (PVC) |
