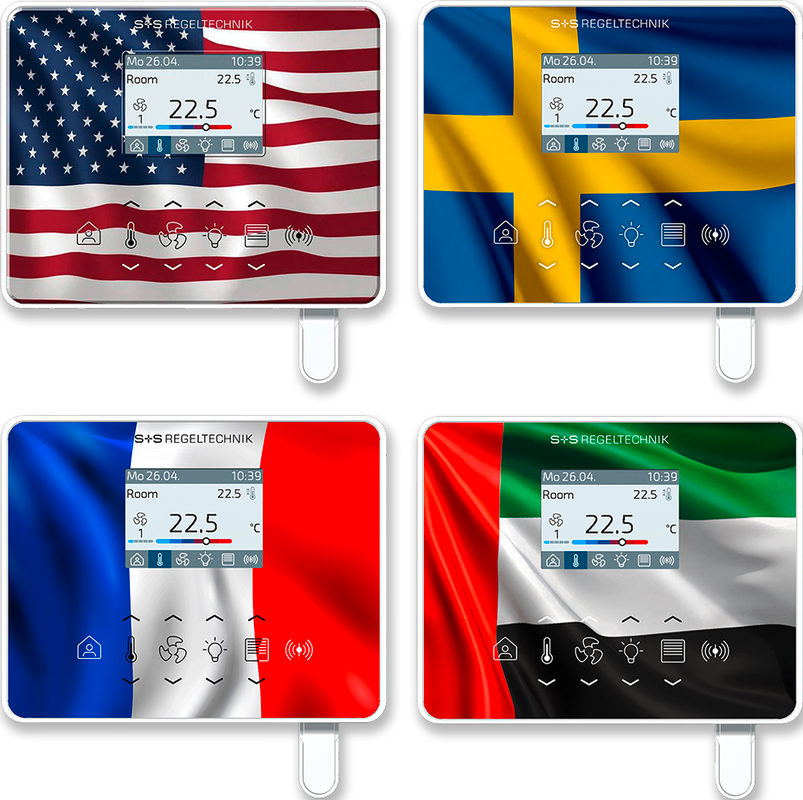

Room operating unit (interface) RYMASKON® RYM 1301-RH-MOD-AP-B

The room control devices of the Rymaskon® 1000 series are designed for controlling (up to 2 HVAC zones) in residential, hotel and office rooms and individually regulate the indoor heating, cooling and fan stages. The controller variants can be operated as stand-alone devices thanks to the integrated control functions PI, PWM or 2-/3-point control. The product family stands out for its elegant design, intuitive operation and the many combination options of the individual components.

The room control devices Rymaskon® 1000 (interface) are used to control temperature, ventilation, solar shading (roller shutters, blinds) or lighting (with dimming function). The room control devices provide the setpoints either via conventionally wired Modbus or via the wireless, radio-based W-Modbus from the BMS/GLT. The visual display is provided by a 2" TFT display, and operation is via capacitive keys (touchkeys).
In addition to the integrated temperature and humidity sensor, optional sensors for CO2 and VOC are available. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are provided. This enables, for example, a window contact or a condensation alarm to be connected. This means all options are available to flexibly and individually condition rooms.
All device types are available in the timeless Iduna 3 enclosure (112 x 89.5 x 24 mm) in the colors white or black. Wall mounting is possible on standard flush-mounting boxes or surface-mounting.
