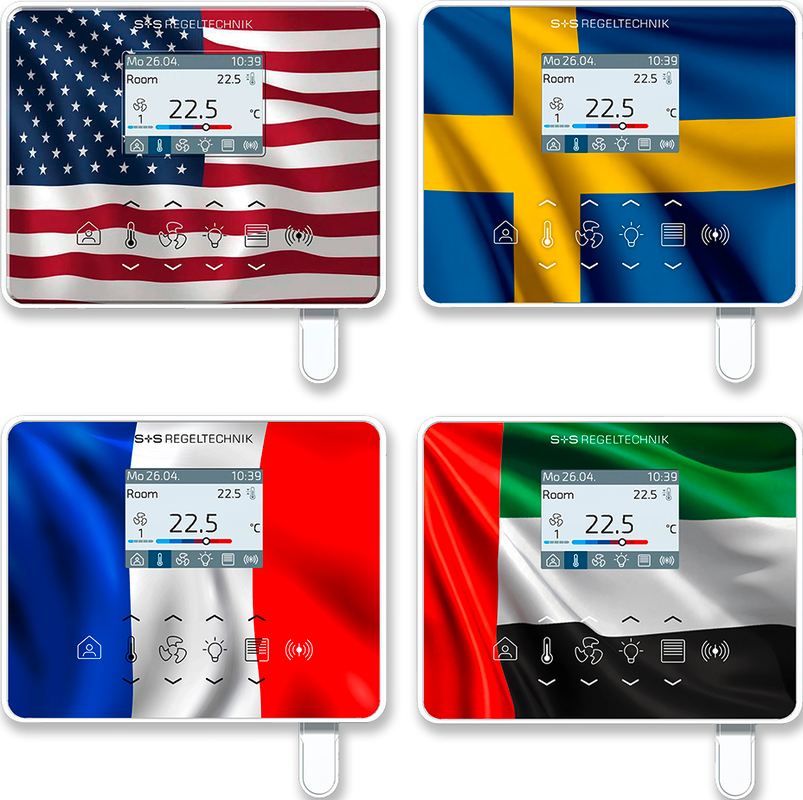

WIRELESS room operating unit (interface) RYMASKON® RYM 1401-RH-CO2-VOC-WMOD-LL

The room control units of the Rymaskon® 1000 series are designed for controlling (up to 2 control zones) in residential, hotel and office rooms and individually regulate the heating, cooling and fan stages of the interior. The controller variants can be operated as stand-alone devices via the integrated control functions PI, PWM or 2-/3-point control. The product family is characterized by an elegant design, intuitive operation and the many possible combinations of the individual components.

The room control units Rymaskon® 1000 (interface) are used to control temperature, fan, solar shading (roller shutters, blinds) or lighting (with dimming function). The room control units provide the setpoints either via conventionally wired Modbus or via the wireless, radio-based W-Modbus of the BMS/BAS. Visual indication is provided by a 2" TFT display, and operation is via capacitive keys (touchkeys).
In addition to the integrated temperature and humidity sensor, optional sensors for CO2 and VOC are available. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are available. For example, a window contact or a condensation monitor can be connected. This ensures that all options are available to flexibly and individually condition the rooms.
All device types are available in the timeless Iduna 3 housing (112 x 89.5 x 24 mm) in the colors white or black. Wall mounting is possible on standard flush-mount boxes or surface-mount boxes.
