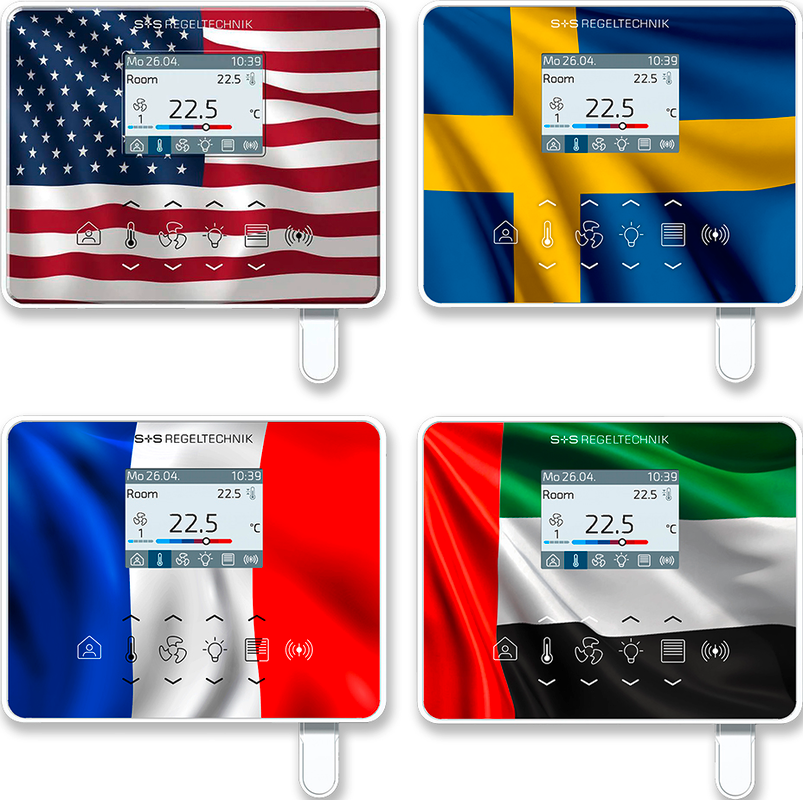

WIRELESS room operating unit (interface) RYMASKON® RYM 1302-RH-VOC-WMOD-LL

The room controllers of the Rymaskon® 1000 series are designed to control (up to 2 HVAC zones) in residential, hotel and office spaces and individually regulate the heating, cooling and fan stages of the interior. The controller variants can be operated as stand-alone units using the integrated control functions PI, PWM, or 2-/3-point control. The product family is characterized by an elegant design, intuitive operation and the wide range of combination options of the individual components.

The room controllers Rymaskon® 1000 (interface) are used to control temperature, fan, solar shading (roller shutters, blinds) or lighting (with dimming function). The room controllers provide setpoints either via conventional wired Modbus or via the wireless, radio-based W-Modbus from building management (GLT). The optical display is provided by a 2" TFT display, and operation is via capacitive buttons (Touchkeys).
In addition to the integrated temperature and humidity sensor, optional sensors for CO2 and VOC are available. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are available. This enables, for example, a window contact or a condensation monitor to be connected. This ensures that all options are available to flexibly and individually climate-control rooms.
All device types are available in the timeless housing Iduna 3 (112 x 89.5 x 24 mm) in the colors white or black. Wall mounting is possible on standard flush-mounted boxes or surface-mounted boxes.
