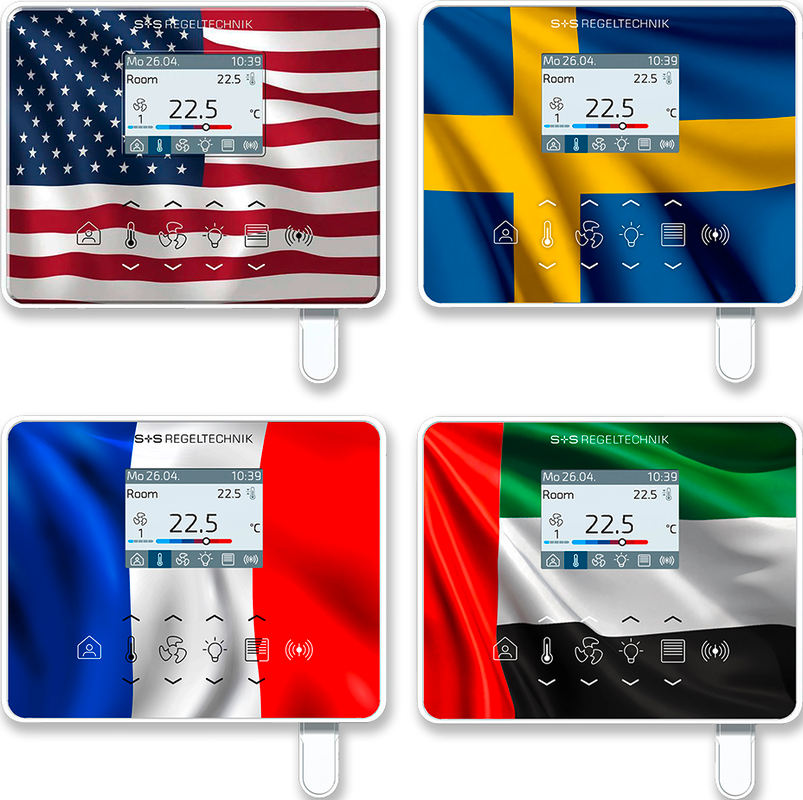

WIRELESS room operating unit (interface) RYMASKON® RYM 1302-RH-CO2-VOC-WMOD-BB

The room control devices of the Rymaskon® 1000 series are designed for controlling (up to 2 HVAC zones) in residential, hotel, and office rooms and individually regulate the heating, cooling, and fan stages of the interior. The controller variants can be operated as stand-alone devices via the integrated control functions PI, PWM, or 2-/3-point control. The product family stands out for its elegant design, intuitive operation, and the many combination options of the individual components.

The room control devices Rymaskon® 1000 (interface) are used to control temperature, fan, solar protection (roller shutters, blinds), or lighting (with dimming function). The room control devices provide setpoints either via conventional wired Modbus or via the wireless, radio-based W-Modbus of the BMS. Visual indication is provided via a 2" TFT display; operation is via capacitive keys (touch keys).
In addition to the integrated temperature and humidity sensor, optional sensors for CO2 and VOC are available. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are provided. This allows, for example, a window contact or a condensation monitor to be connected. As a result, all options are available to flexibly and individually climate-control the rooms.
All device types are available in the timeless Iduna 3 housing (112 x 89.5 x 24 mm) in the colors white or black. Wall mounting is possible on standard flush-mounted boxes or surface-mounted boxes.
