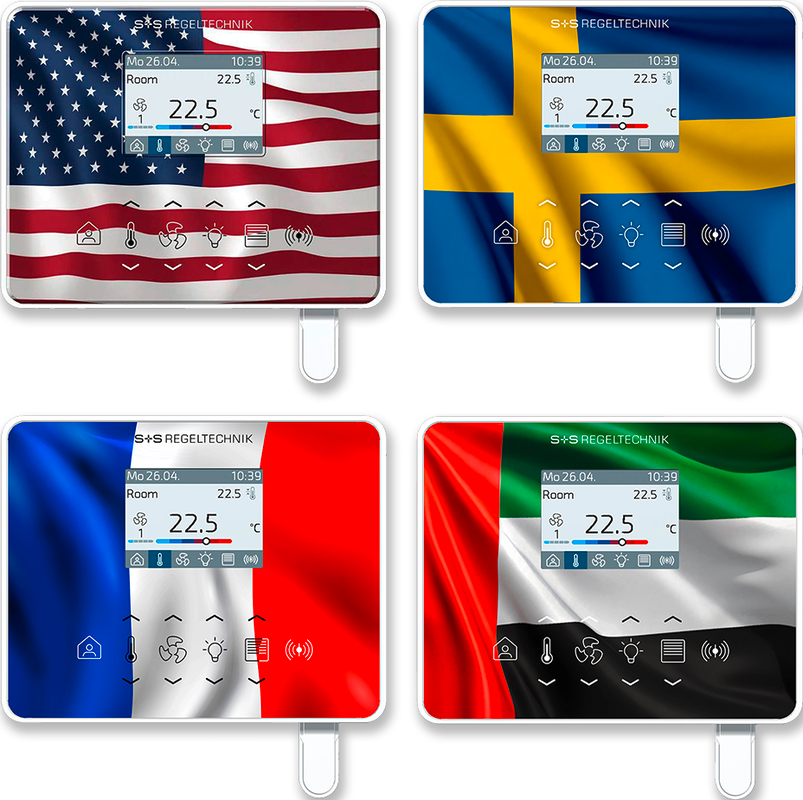

WIRELESS room operating unit (interface) RYMASKON® RYM 1301-RH-WMOD-AP

The room controllers of the series Rymaskon® 1000 are designed to control (up to 2 heating/cooling zones) living, hotel, and office rooms, and individually regulate the indoor heating, cooling, and fan stages. The controller variants can be operated as stand-alone devices via the integrated control functions PI, PWM, or 2-/3-point control. The product family is characterized by its elegant design, intuitive operation, and the wide range of combination possibilities of the individual components.

The room controllers Rymaskon® 1000 (interface) are used to control temperature, fan, solar protection (roller shutters, blinds) or light (with dimming function). The room controllers provide the setpoints either via conventionally wired Modbus or via the wireless, radio-based W-Modbus of the BMS. The optical display is implemented via a 2" TFT display, and operation is via capacitive keys (Touchkeys).
In addition to the integrated temperature and humidity sensor, optional sensors for CO2 and VOC are available. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are available. This allows, for example, a window contact or a condensation monitor to be connected. This ensures that all options are available to flexibly and individually climate-control the rooms.
All device types are available in the timeless housing Iduna 3 (112 x 89.5 x 24 mm) in the colors white or black. Wall mounting is on standard flush-mounting boxes or surface-mounting.
