Outdoor temperature sensor / humid room temperature sensor THERMASGARD® ATF01 NTC1.8K
THERMASGARD® ATF01 NTC1.8K
SKU 1101-1031-2001-000
EAN 4 251325 600222
Product group: WG03B
In stock
, available in 1-3 working days
Shipping calculated at checkout.
Regular price
16,03 €
Regular price
Sale price
16,03 €
Livraison en 2 jours en France
5 ans de garantie
Demander une remise quantitative
Product description
- passive
- –50...+90 °C
- 2-wire connection
- IP54

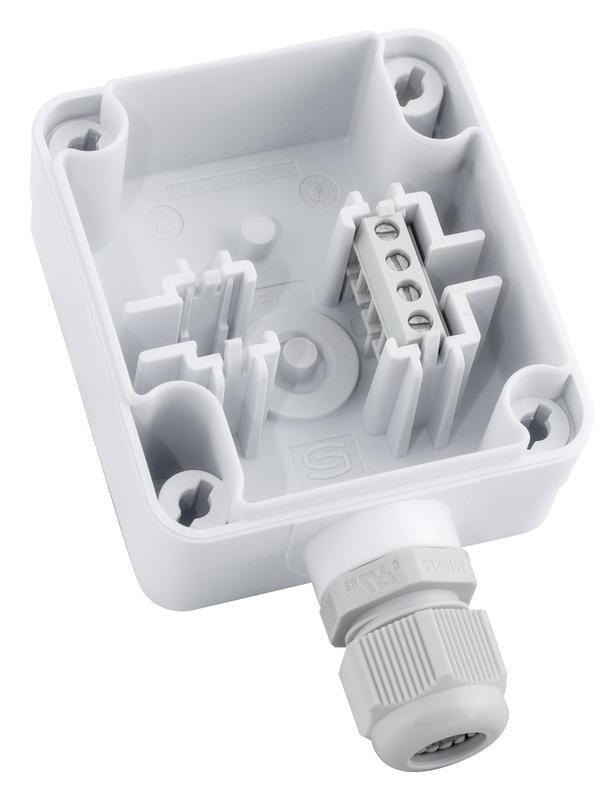

External wall resistance thermometer/ weather sensor THERMASGARD® ATF 1 (internal sensor) with passive output, with housing made of impact-resistant plastic and quick-locking screws. External wall resistance thermometer/ weather sensor THERMASGARD® ATF 01 (internal sensor) with passive output, with housing made of impact-resistant plastic and snap-on cover.
It is used to record the outdoor temperature, the temperature in damp areas, e.g. as an outdoor sensor, weather sensor, for mounting on external walls, in cold stores and greenhouses, in halls, in industrial areas and in agriculture. In outdoor areas, the temperature sensor is preferably installed on the north side or in a protected location. In direct sunlight, the WS 01 or WS 04 sunshade must be used.
It is used to record the outdoor temperature, the temperature in damp areas, e.g. as an outdoor sensor, weather sensor, for mounting on external walls, in cold stores and greenhouses, in halls, in industrial areas and in agriculture. In outdoor areas, the temperature sensor is preferably installed on the north side or in a protected location. In direct sunlight, the WS 01 or WS 04 sunshade must be used.
Technical data
| Sensor | NTC 1.8K |
| Function type | Measurement of temperature |
| Measured variables | Temperature, passive temperature |
| Display | No |
| Ingress protection | IP54 |
| Output variant | Cable gland |
| Housing | Tyr 01 |
| Measuring range | –50...+90 °C |
