%RH
Surface-mounted humidity sensor / Outdoor humidity sensor HYGRASGARD® AFF-20-I
HYGRASGARD® AFF-20-I
SKU 1201-7112-0000-201
EAN 4 251325 618722
Product group: WG02
In stock
, available in 1-3 working days
Shipping calculated at checkout.
Regular price
266,17 €
Regular price
Sale price
266,17 €
Livraison en 2 jours en France
5 ans de garantie
Demander une remise quantitative
Product description
- 0...100 % RH
- Measurement accuracy: ± 1.8 %
- Relative humidity [% RH]
- 4...20 mA
- IP 65

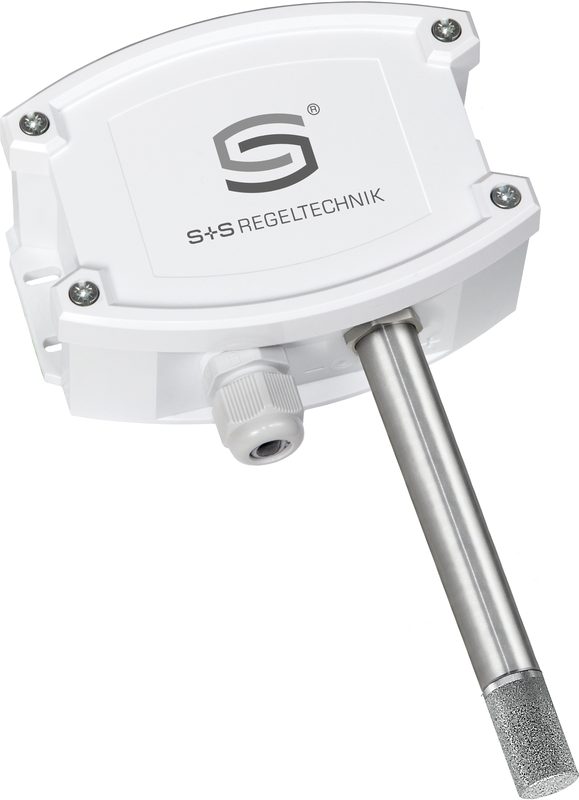

Calibratable outdoor humidity/temperature sensor HYGRASGARD® AFF-20 / AFTF-20 (± 1.8 %) with plastic sintered filter (optional metal sintered filter), housing made of impact-resistant plastic with quick-release screws, optionally with/without display and with cable gland (optional M12 plug connector in accordance with DIN EN 61076-2-101).
The devices measure the relative humidity and/or temperature of the air and convert the measured variable into a standard signal of 0-10 V or 4...20 mA. It has four switchable temperature ranges and is used in non-aggressive, dust-free environments, in refrigeration, air conditioning, ventilation and clean room technology. The transmitters are designed for the precise measurement of humidity. A digital, long-term stable sensor is used as the humidity measuring element. The sensor is calibrated at the factory; fine adjustment by a specialist is possible depending on the environment.
The devices measure the relative humidity and/or temperature of the air and convert the measured variable into a standard signal of 0-10 V or 4...20 mA. It has four switchable temperature ranges and is used in non-aggressive, dust-free environments, in refrigeration, air conditioning, ventilation and clean room technology. The transmitters are designed for the precise measurement of humidity. A digital, long-term stable sensor is used as the humidity measuring element. The sensor is calibrated at the factory; fine adjustment by a specialist is possible depending on the environment.
Technical data
| Measuring | relative humidity |
| Power supply | 15...36 V DC depending on cable length, residual ripple is stabilized at ± 0.3 V |
| Output | 4..20 mA |
| Display | No |
| Output variant | cable gland connection |
| Measuring range | 0...100 % RH |
| Equipment | sintered filter, plastic |
| Output | 4...20 mA |
| Humidity sensor tolerance | 1.8 % |
