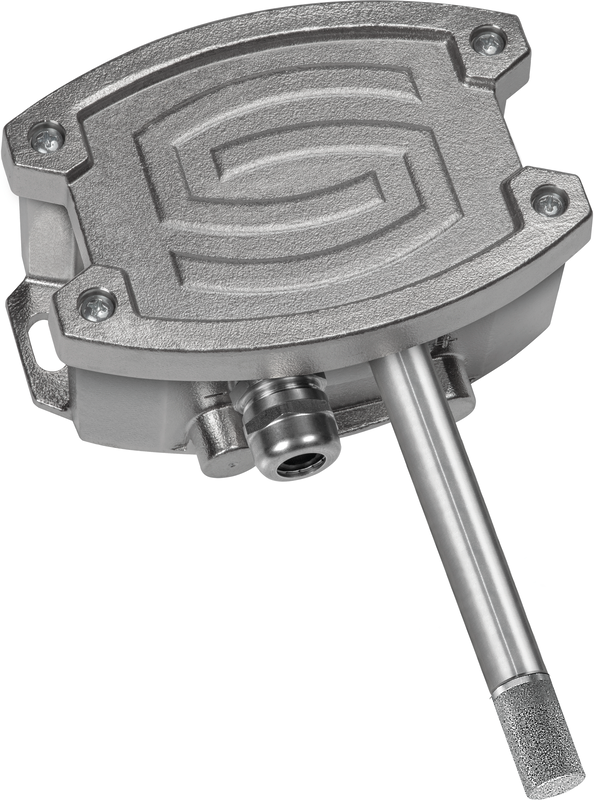

On-wall humidity sensor / outdoor humidity sensor HYGRASGARD® AFTF-20-I VA
HYGRASGARD® AFTF-20-I VA
SKU 2003-6181-2200-001
EAN 4 251325 622224
Product group: WG02I
In stock
, available in 1-3 working days
Shipping calculated at checkout.
Regular price
688,29 €
Regular price
Sale price
688,29 €
Livraison en 2 jours en France
5 ans de garantie
Demander une remise quantitative
Product description
- –35...+35 / –35...+75 / 0...+50 / 0...+80 °C
0...100 % RH - Measurement accuracy: typically ± 0.2 K at +25 °C
- Temperature [°C], relative humidity [% RH]
- 4...20 mA
- IP 65
Calibratable outdoor humidity and temperature transmitter HYGRASGARD® AFTF - 20-VA (± 1.8 %) with metal sinter filter, robust housing made of stainless steel V4A, optionally with/without display, with cable gland or M12 plug connector in accordance with DIN EN 61076-2-101.
The sensor measures the relative humidity and/or temperature of the air and converts the measured variable into a standard signal of 0-10 V or 4...20 mA. It has four switchable temperature ranges and is used in non-aggressive, dust-free environments, in refrigeration, air conditioning, ventilation and clean room technology. The measuring transducer is designed for the precise measurement of humidity. A digital, long-term stable sensor is used as the humidity measuring element. The sensor is calibrated at the factory; fine adjustment by a specialist is possible depending on the environment.
The sensor measures the relative humidity and/or temperature of the air and converts the measured variable into a standard signal of 0-10 V or 4...20 mA. It has four switchable temperature ranges and is used in non-aggressive, dust-free environments, in refrigeration, air conditioning, ventilation and clean room technology. The measuring transducer is designed for the precise measurement of humidity. A digital, long-term stable sensor is used as the humidity measuring element. The sensor is calibrated at the factory; fine adjustment by a specialist is possible depending on the environment.
Technical data
| Measuring range | Temperature, relative humidity |
| Power supply | 15...36 V DC dependant on the load condition, residual ripple stabilized ± 0.3 V |
| Output | 4..20 mA |
| Display | No |
| Output variant | Cable gland |
| Additional measured variable to °C + %RH | + °C |
| Cable connection | Cable gland |
| Features | Metal sinter filter |
| Output | 4...20 mA |
| Humidity sensor tolerance | 1.8 % |
