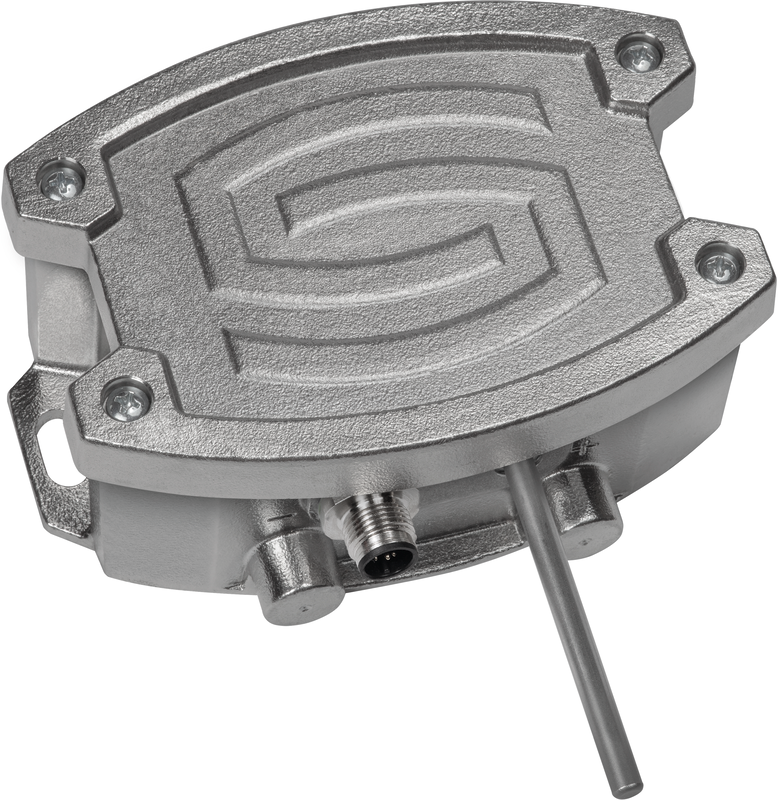

Outdoor temperature/ humidity room temperature transmitter THERMASGARD® ATM2-I VAQ
THERMASGARD® ATM2-I VAQ
SKU 2001-6171-2100-001
EAN 4 251325 622460
Product group: WG02I
In stock
, available in 1-3 working days
Shipping calculated at checkout.
Regular price
458,85 €
Regular price
Sale price
458,85 €
Livraison en 2 jours en France
5 ans de garantie
Demander une remise quantitative
Product description
- - 20...+ 150 °C / - 50... + 50 °C / - 20... + 80 °C / - 30... + 60 °C / 0... + 40 °C / 0... + 50 °C (default) / 0...+ 100 °C / 0...+ 150 °C
- 4...20 mA
- M12 plug connector
- Stainless steel, V4A
- IP65
Calibratable outdoor temperature transmitter THERMASGARD® ATM 2 - VA with eight switchable measuring ranges, external sensor, continuous output, robust housing made of stainless steel V4A, with cable gland or M12 plug connector in accordance with DIN EN 61076-2-101.
It is used to record the outdoor temperature, the temperature in damp areas and is suitable for mounting on external walls, in cold stores and greenhouses, in industrial areas and in agriculture, for example. In outdoor areas, the temperature transmitter is preferably installed on the north side or in a protected location. In direct sunlight, the sun and ball protection WS 01 or WS 03 (accessories) must be used.
The sensor is calibrated at the factory; fine adjustment by a specialist is possible depending on the environment.
It is used to record the outdoor temperature, the temperature in damp areas and is suitable for mounting on external walls, in cold stores and greenhouses, in industrial areas and in agriculture, for example. In outdoor areas, the temperature transmitter is preferably installed on the north side or in a protected location. In direct sunlight, the sun and ball protection WS 01 or WS 03 (accessories) must be used.
The sensor is calibrated at the factory; fine adjustment by a specialist is possible depending on the environment.
Technical data
| Measurement | Temperature |
| Power supply | 15...36 V DC depending on the load, ripple is stabilized ± 0.3 V |
| Display | No |
| Degree of protection | IP65 |
| Output variant | M12 plug connector |
| Housing variant | Quick-connect connector |
| Measuring range | – 20...+ 150 °C / – 50... + 50 °C / – 20... + 80 °C / – 30... + 60 °C / 0... + 40 °C / 0... + 50 °C (default) / 0... + 100 °C / 0... + 150 °C |
| Cable connection | M12 plug connector |
| Equipment | none |
| Output | 4...20 mA |
