Surface-mounted moisture sensors / Outdoor moisture sensors HYGRASGARD® AFF-20-U
HYGRASGARD® AFF-20-U
SKU 1201-7111-0000-201
EAN 4 251325 618708
Product group: WG02
In stock
, available in 1-3 working days
Shipping calculated at checkout.
Regular price
266,17 €
Regular price
Sale price
266,17 €
Livraison en 2 jours en France
5 ans de garantie
Demander une remise quantitative
Product description
- 0...100 % RH
- Measurement accuracy: ± 1.8 %
- Relative humidity [% RH]
- 0 - 10 V
- IP 65

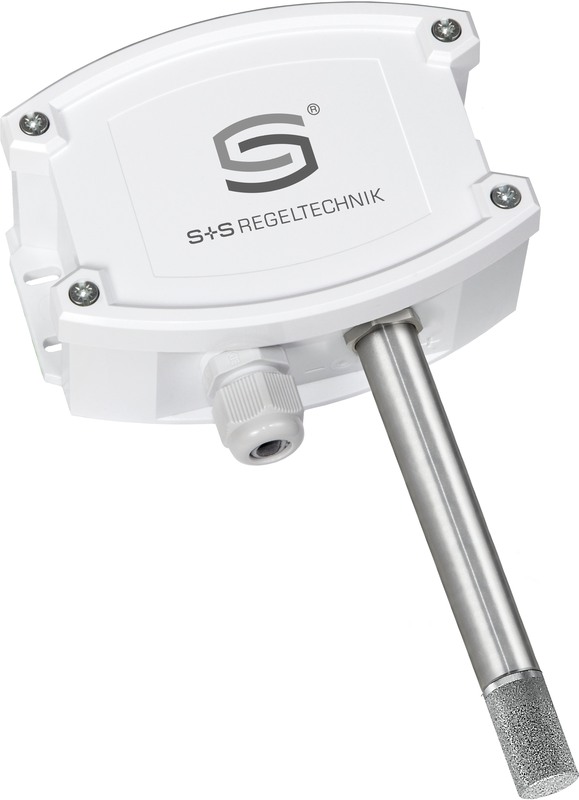

Calibratable outdoor humidity/temperature sensor HYGRASGARD® AFF-20 / AFTF-20 (± 1.8 %) with plastic sintered filter (optional metal sintered filter), housing made of impact-resistant plastic with quick-release screws, optionally with/without display and with cable gland (optional M12 plug connector in accordance with DIN EN 61076-2-101).
The devices measure the relative humidity and/or temperature of the air and convert the measured variable into a standard signal of 0-10 V or 4...20 mA. It has four switchable temperature ranges and is used in non-aggressive, dust-free environments, in refrigeration, air conditioning, ventilation and clean room technology. The transmitters are designed for the precise measurement of humidity. A digital, long-term stable sensor is used as the humidity measuring element. The sensor is calibrated at the factory; fine adjustment by a specialist is possible depending on the environment.
The devices measure the relative humidity and/or temperature of the air and convert the measured variable into a standard signal of 0-10 V or 4...20 mA. It has four switchable temperature ranges and is used in non-aggressive, dust-free environments, in refrigeration, air conditioning, ventilation and clean room technology. The transmitters are designed for the precise measurement of humidity. A digital, long-term stable sensor is used as the humidity measuring element. The sensor is calibrated at the factory; fine adjustment by a specialist is possible depending on the environment.
Technical data
| Measurement | relative humidity |
| Power supply | 24 V AC (± 20 %) and 15...36 V DC |
| Output | 0-10V |
| Display | No |
| Output version | Cable gland |
| Measuring range | 0...100 % RH |
| Features | Sintered filter, plastic |
| Output | 0 - 10 V |
| Humidity sensor tolerance | 1.8 % |
